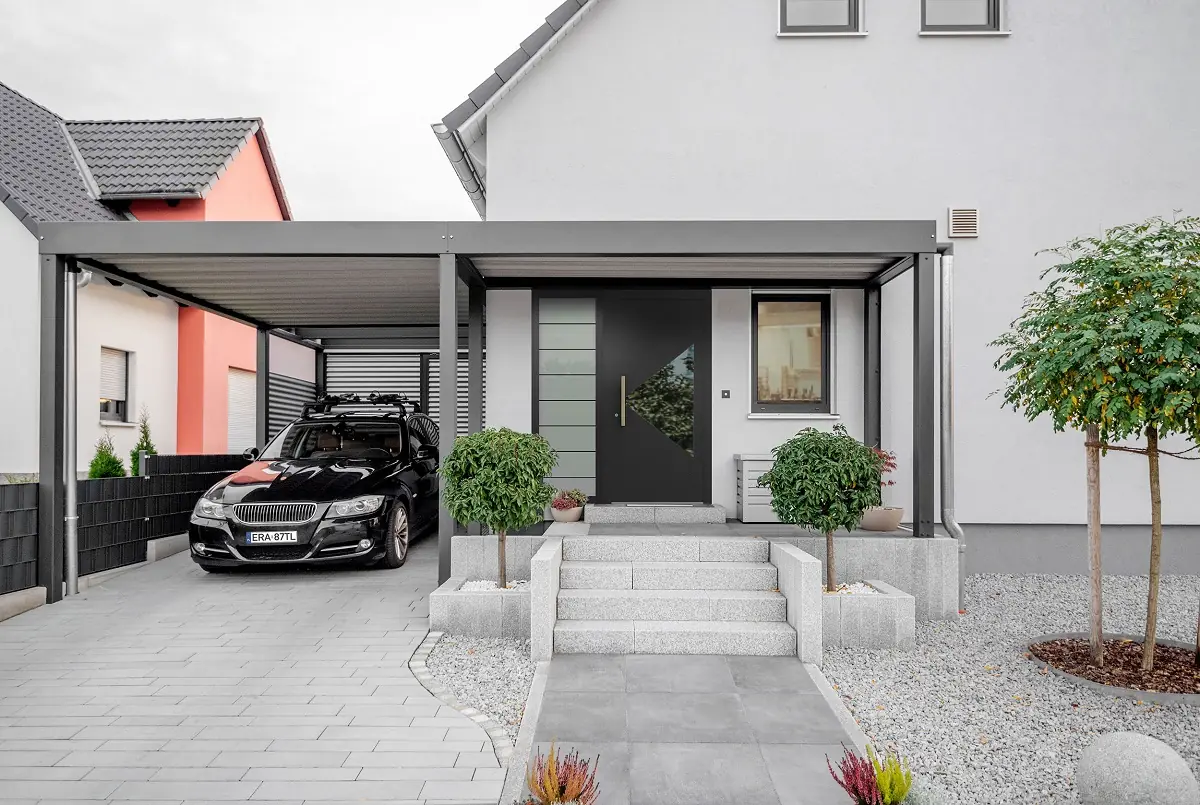

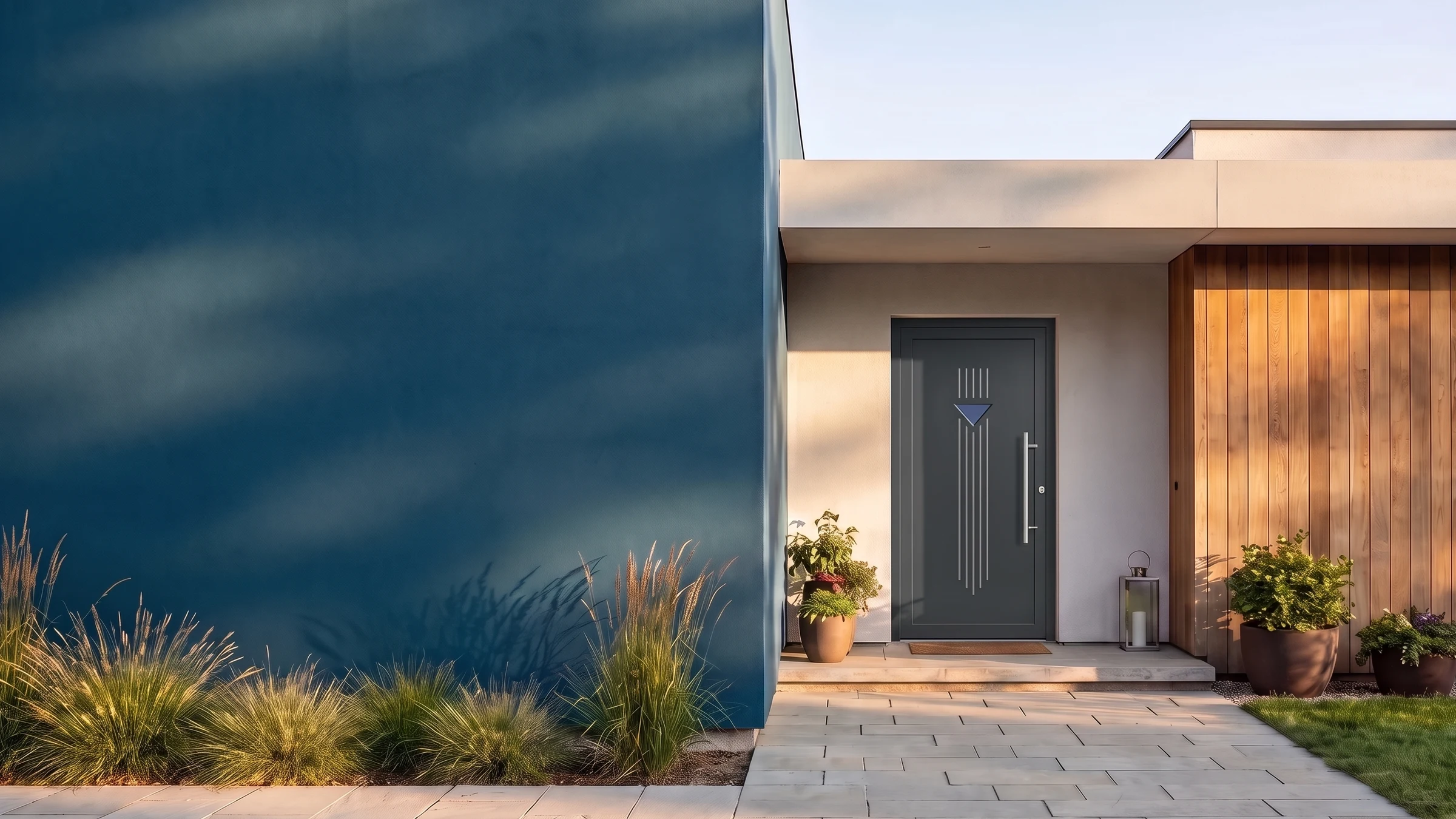

Split ALU
Doors inspired by the extraordinary landscapes of picturesque Croatia, where steep mountains merge with the smooth surface of the Adriatic.
Doors inspired by the extraordinary landscapes of picturesque Croatia, where steep mountains merge with the smooth surface of the Adriatic.
Three systems — one model
The Split ALU collection is available in three profile variants differing in thermal insulation properties, frame depth and filling options.
| Parameter | Imperial Economical variant of aluminium doors | Genesis Enhanced thermal parameters | MB-104 Passive Perfect design and thermal insulation |
|---|---|---|---|
| Frame depth | 65 mm | 75 mm | 95 mm |
| Ud coefficient* | 1.4 W/m²K | 0.91 W/m²K | 0.72 W/m²K |
| Filling options | Insert (36 mm) | Insert (36 mm), one-sided overlay (60 mm), two-sided overlay (75 mm) | two-sided overlay (95 mm) |
| Frame type | Standard, Renovation (finishing profile), Monoblock (finishing profile) | Standard, Renovation (finishing profile), Monoblock (finishing profile) | Standard |
| Profile | Aliplast: Imperial | Aliplast: Genesis | Aluprof: MB-104 Passive |
| Colour palette | RAL, decorative lacquers | RAL, decorative lacquers | RAL, decorative lacquers |
* The Ud value depends on the configuration — the values given refer to a typical door configuration.
Key features
Ideal for
Pattern variants — Split ALU
Each pattern available in all three system variants (Imperial, Genesis, MB-104 Passive) and 10 RAL colours.
Specifications — Split ALU
| Parameter | Value |
|---|---|
| Material | Aluminium |
| System variants | 3 (Imperial / Genesis / MB-104) |
| Ud coefficient | from 0.72 W/m²K |
| Burglar resistance class | RC2 |
| Available colours | 10 RAL + decorative |
| Central locking | Yes |
| Low threshold | Aluminium with thermal break |
| Smart Home | Optional |
| Opening direction | Inwards / outwards |
| Patterns (fillings) | 7 |
| Certificates | CE, EN 14351-1 |
| Warranty | 2 years |
RAL colours
Split ALU is available in 10 RAL colours and decorative lacquers to order.
Choose colour
+ decorative lacquers to order
The colour swatches and product visualisations shown above do not fully reflect the actual colours or the real material structure — they are intended only as an indicative visual reference of the final result.
Preview
Click a colour to see the preview
Split ALU vs other Budvar collections
Each collection offers a unique design — all available in three system variants and 10 RAL colours.
Downloads
Download the product documentation in PDF format.
