Step-by-Step Guide to Installing External Roller Shutters

The curtain stopped halfway up the window because the guide rail skewed. This sight after the first strong wind is the most common signal that someone installed the roller shutter "by eye," without a level and without checking the vertical. External roller shutters may seem like a simple product, but the installation itself has more pitfalls than it appears at first glance.

This guide leads through the entire process: from choosing the type of installation, through measurements and tools, to adjusting and testing the finished system. We also show what not to do, as the list of installation errors is as long as the list of instruction steps.

Installation of External Roller Shutters: Two Installation Methods

The first decision is made even before ordering. External roller shutters can be installed in two main ways: on the facade or in the window recess. Each variant has different requirements for preparing the opening and a different time when the decision must be made.

Facade installation, also known as surface-mounted, involves attaching the box directly to the wall above the window. This solution is the easiest to implement in an already built and occupied house. It does not require interference with the lintel structure, and the box remains fully accessible from the outside. The downside is the visible casing on the facade, which may not appeal aesthetically to everyone.

Installation in the window recess utilises the space above the window if the building's architecture allows it. The box partially hides within the wall, so it protrudes less beyond the facade's surface. However, you must carefully check the depth of the recess and ensure that the curtain, when rolled up, fits without colliding with the sill or lintel.

Which option makes sense in a specific case? For modernising an existing building, adaptive solutions mounted on the finished window frame or on the wall are more practical. When building a new house or fully replacing the facade, a concealed (built-in) system offers a better visual effect and less risk of thermal bridges, provided that the insulation around the box is done without gaps.

Window Measurement and Choosing the Installation Location

An error made during the measurement stage haunts you with every use of the roller shutter. The width and height of the opening must be measured at several points, not just one. The top, middle, and bottom of the opening are measured separately, and the smallest obtained value is used for ordering. Why the smallest? Because excess material can be adjusted during installation, while a shortage means returning the product.

Measure each window individually, even in the same building.

Structures made by the same team in the same season can differ in dimensions by a few millimetres, which is enough for the guide rails not to sit evenly. Point measurement of width, without checking several places along the height of the opening, is one of the most common reasons why external roller shutters operate unevenly from day one.

The measurement method varies depending on the type of installation. For shutters mounted to the window frame, the width is usually calculated as the width of the glass plus a few centimetres of allowance, and the height corresponds to the entire height of the sash. For shutters in a box, the width and height of the glass are measured including the glazing beads. When mounting on the wall or soffit, measure the width of the recess and add allowance on both sides to minimise gaps between the guide rail and the wall.

The height is measured from the planned location of the box to the sill or floor, depending on the construction. Before ordering, it's also worth checking if there is enough space in the opening for the box itself and if it doesn't collide with the lintel, window, internal shutter, or existing electrical installations. Skipping this check sometimes ends with dismantling a freshly installed sill.

The fundamental rule is: always follow the measurement instructions provided by the specific manufacturer.

Installation systems differ from each other, so a universal table found online may not fit the ordered model. It's better to check the dimensions twice with the catalogue of the specific system than to order incorrectly once and wait for a complaint.

Preparing Tools and Kit Components

A complete set of tools saves time and nerves. Basic equipment includes a tape measure, pencil for marking mounting points, level, hammer drill, screwdriver, adjustable wrenches, and a set of dowels and screws matched to the type of substrate. A level is absolutely essential because even a slight deviation of the box from the level translates to uneven curtain rolling.

The choice of dowels depends on the wall material.

Brick, concrete, aerated concrete, and wooden window frames require completely different fasteners, and using a universal expansion dowel where a dowel for porous materials is needed results in the mounting being torn out at the first strong gust. In systems with increased resistance, it is recommended to use secured anchors, for example security-head screws/anchors, and to ensure a stable substrate under the box and guide rails across the entire surface of contact, not just at the screw points.

Before starting work, it's worth laying out all the kit components and comparing them with the list in the instructions. The box, guide rails, curtain, bottom strip, stops, control mechanism, and complete set of screws should be complete before drilling the first hole. Missing one element halfway through installation means a break, and leaving an open window or scaffolding for another day is unnecessary risk.

Installation components should also be checked for quality of workmanship. A bent guide rail or curtain with visible transport damage is better reported immediately before they are installed. A complaint after installation is usually more difficult than replacing an element before starting work.

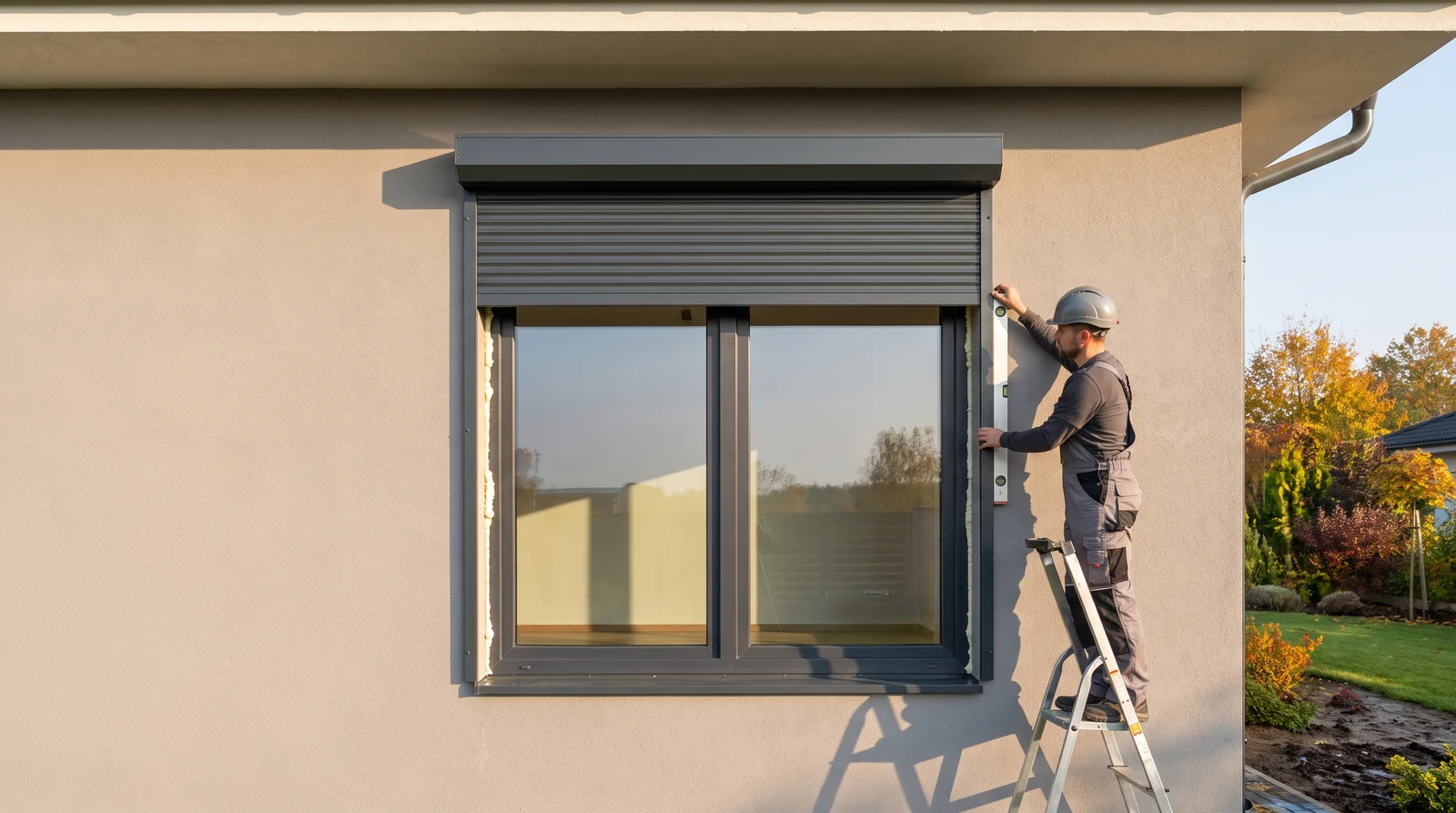

Step-by-Step Installation of the Box and Guide Rails

The installation begins with marking the mounting points of the box, according to the previous measurement and the manufacturer's instructions. The box must be level because any deviation will affect the operation of the entire mechanism. After placing the box against the wall and checking with a level, drill the mounting holes and then insert the expansion dowels matched to the substrate material.

The guide rails are installed immediately after the box, before the curtain appears.

These are metal or plastic profiles that keep the shutter moving vertically and must be set exactly vertically and parallel to each other. Skewing the guide rail by even a few millimetres increases friction, generates noise, and leads to the curtain jamming during descent. It is recommended to use rivets for attaching the guide rails, which connect them more solidly to the box than screws alone and limit the risk of the element sliding out over time.

After securing the guide rails, the curtain is placed in the guide rails, usually by sliding it from the top or attaching it to special guide strips, depending on the specific system. The curtain should sit evenly in the guide rails, without slack or excessive play across the width. Finally, the bottom strip is installed along with the stops, which hold the curtain in place and prevent it from sliding out of the guide rails when fully extended.

The extended curtain should be a short distance from the glass, not directly on it.

Contact of the curtain with the glass during each opening and closing leads to scratches and faster wear of the slat coatings. It's worth checking this right after installation, before the shutter undergoes its first full cycle of operation.

Connecting Manual or Electric Control

A manual shutter requires mounting a crank or chain mechanism, according to the instructions included in the kit. The cord, tape, or control cable is routed through a previously prepared hole in the wall or frame, and the hole itself must be sealed after the work is completed. An unsealed passage is a direct path to draughts and moisture penetrating the wall structure.

Electric drive is a different level of responsibility.

Connecting the motor to the power source must be done according to the manufacturer's instructions, and the connection to the home's electrical system should be performed by an electrician who ensures protection against electric shock in line with BS 7671 (IET Wiring Regulations). In the UK, domestic electrical work is also subject to Part P of the Building Regulations; in Ireland, the National Rules for Electrical Installations (ET 101) apply. Always use a qualified electrician. The tubular motor is selected based on the weight of the curtain, the dimensions of the shutter, and the planned number of operation cycles per day. An undersized drive overloads faster and loses lifespan, while an oversized one generates unnecessary costs.

After connecting the drive, the limit switches must be set, which are the points where the motor automatically stops the curtain movement at the top and bottom. Incorrectly set limit switches cause the curtain to hit the box when rolling up or excessively lower the bottom strip, which over time strains the mechanism. This stage requires several attempts and adjustments before the movement becomes smooth across the entire window height.

Those considering a remote control, group control, or integrating several shutters into one system should plan this before purchase, as not every drive is compatible with every controller. More about choosing control, including differences between a remote, wall switch, and weather automation, can be found in a separate Guide on Controlling External Shutters, which expands on this topic much more than the scope of this article allows.

Adjustment, Sealing, and Testing the Shutter

The completed installation must be tested before considering the work finished. Perform several full cycles of opening and closing, checking the limit stop, the level of the curtain across the entire width, the smooth operation of the guide rails, and the reaction to any obstacles. If the shutter jams, squeaks, or stops in unexpected places, it's better to pause and find the cause immediately rather than hoping the problem will disappear on its own.

Sealing the connections is a step often overlooked, with consequences felt only in winter.

The contact between the box and the facade or lintel, the passages of control cables, and all installation gaps must be sealed with silicone or another sealing compound appropriate for the wall material. Lack of such sealing reduces the insulation of the entire system and promotes moisture in the wall around the box, which in the long run leads to plaster detachment and mould issues.

The inspection cover of the box must remain accessible after finishing work.

This is one of the most common installation errors, consistently overlooked during facade work: covering the cover with permanent construction or plastering it permanently. Access to the inspection must remain possible without removing insulation or interior finishes—typically from the outside on facade-mounted systems and from below/inside on concealed (built-in) systems. When the motor needs to be replaced or the mechanism repaired after a few years, lack of access to the inspection means breaking the facade, which could have been avoided with a single phone call to the contractor before plastering.

It's also worth checking the documentation of each installed shutter. The declaration of performance, installation instructions, and user manual should be provided by the seller along with the product, and their absence should raise suspicion. This is especially true for the wind resistance class, which must be confirmed for the exact size of the installed shutter, not for a smaller reference model given in the brochure.

Choosing the Wind Class for a Specific Window

The wind resistance class is not a single number for the entire product range of a manufacturer. The classification system covers a range from class 0, indicating no declared resistance, to class 6, corresponding to the highest test pressures. Class 1 corresponds to a pressure of about 50 N/m², and class 6 to 400 N/m², showing how wide the range is between variants available on the market.

Translating these classes into real weather conditions looks approximately like this: class 1 withstands wind below about 9 metres per second, class 3 below 12.6 metres per second, and class 6 below 25 metres per second. These are indicative values only; actual performance depends on the applicable standard, the specific shutter configuration and dimensions. Always base the decision on the product data for the exact size being ordered.

A simple rule like lower class for the ground floor, higher class for upper floors, is not enough.

The documentation of a specific product determines the permissible class based on the width and height of the curtain itself, so the same shutter in a narrower version may have a different classification than in a wider version. For large glazing, typical of modern homes with panoramic windows, it is more advantageous to divide the opening into several independent curtains instead of one very wide element. This solution limits guide rail deflection and reduces the load on the entire mounting structure.

The material of the curtain also matters when choosing the class. Aluminium is usually stiffer and lighter with a similar function than PVC profiles, which is why it is more often chosen for large glazing, shutters with increased mechanical resistance, and systems with electric drive. PVC is suitable for smaller windows and less loaded openings, where weight and other priorities matter more than maximum structural stiffness.

Common Mistakes in DIY Installation

The list of typical mistakes repeats regardless of region and contractor. Ordering a shutter based on a single width measurement, without checking several points along the height of the opening, leads to collisions during installation or leaks that only reveal themselves after the first rain. Mounting the box only to the insulation layer, without reaching the load-bearing wall structure, is a mistake that sooner or later ends with the entire system falling off.

Too few mounting points reduce wind resistance even when using a high-strength shutter. There is also the opposite extreme: tightening screws too much, which deforms the guide rail and increases the resistance of the curtain movement, leading to faster drive wear. Both of these errors result from haste and skipping the stage of thoroughly checking the installation instructions for the specific system.

In winter, an additional problem arises.

Operating a frozen or snow-laden shutter can cause damage to the curtain, blocking hangers, or the motor itself. Before the first operation after frost, it's worth checking if the curtain is not frozen to the sill or guide rails, instead of immediately pressing the control button and hoping the mechanism will handle it.

Automation without a wind sensor is another trap, especially in systems with a programmed lowering schedule. A shutter programmed to close at a specific time may operate during a strong gust, exceeding the allowable working conditions for the given resistance class. A wind sensor blocking curtain movement in such conditions is a small addition that realistically extends the lifespan of the entire system.

Security and Thermal Insulation of the Shutter

The term "security shutter" used in marketing materials without indicating a specific resistance class says little about real security. Burglary resistance classes for openings include a range marked with symbols from RC1 upwards, with external shutters available on the market most often falling into the lower classes of this range, related to resistance to attacks conducted with hand tools and moderate force.

A reinforced curtain is only half of the equation.

Full anti-burglary protection also requires blocking hangers, reinforced guide rails, and proper mounting to a stable substrate across the entire surface of the box's contact. Does a shutter with thicker slats, but mounted on regular dowels in weak plaster, provide a real advantage over a standard system? It does not, because the effectiveness is determined by the entire mounting system, not just the curtain material. Before purchasing, it is worth demanding a document confirming the resistance class and ensuring that all elements required by the certificate are included, not just the curtain itself.

Thermal insulation of the shutter is a separate topic, often confused with the parameter of the entire window. The heat transfer coefficient describing the window is not identical to the effect provided by a shutter installed on it, as it depends on the definition of the tested set adopted by a specific manufacturer. The actual impact on reducing heat loss depends on the box's tightness, the quality of insulation around the guide rails, and whether the control cable passages have been properly sealed. The greatest risk of deteriorating thermal parameters occurs with discontinuous insulation around the lintel box, precisely where contractors most often take shortcuts during facade work.

Those planning a full replacement of joinery along with shutter installation can check the full range of technical parameters of windows in the article on How to Choose Windows for Your Home and Which Parameters Actually Determine the thermal comfort of the entire building, not just the shutter itself.

When to Call a Team Instead of Installing Yourself

Installing a surface-mounted shutter on the ground floor, in a ready opening, without interfering with the structure, is within reach of a person with basic manual skills and a complete set of tools. The situation is different with concealed (built-in) systems, work at heights requiring scaffolding or a lift, or when installing several shutters with central control simultaneously.

Working at heights is not the place for experiments.

Installing a shutter on an upper floor, especially with limited access to the facade, requires stable scaffolding or equipment adapted for working at heights, and improvising with a ladder leaned against the wall is a direct path to an accident. A professional team also has knowledge of local wind conditions and selecting the appropriate resistance class, which is difficult for a layperson to assess based solely on tables from the internet.

In multi-family buildings, there is an additional formal dimension. Interference with the facade, even in the form of installing one box, may require the consent of the freeholder or managing agent/management company, or the homeowners’ association/residents’ association, as the facade is often a common part. Before ordering shutters for an apartment in a block, it's worth obtaining a written statement from the manager to avoid a dispute afterward and the need to dismantle an already installed system.

The decision to install yourself or hire professionals should not be based solely on the desire to save money. An installation error discovered after a few years, when the box starts leaking or the guide rail loses stiffness, costs more than professional installation from the start. For facade shutters on the ground floor, self-work makes sense if you have the time for accurate measurement and the patience for repeatedly checking the level before finally tightening the screws.

A well-planned installation of external roller shutters is a job that pays off through years of trouble-free operation, not just the first season without defects.
